Part Number: TE-1440
SFP Module 1000BASE-T1 H-MTD
Product Description
The SFP Module 1000BASE-T1 H-MTD is a solution to convert between 1000BASE-T1 and SGMII using an H-MTD connector. It fits into a standard SFP(+) (Small Form-factor Pluggable) slot and provides an Automotive Ethernet interface (100/1000 Mbit/s full-duplex, on one single twisted pair cable). When plugged into approved devices, Hardware-in-Loop (HiL) systems, and test benches with compatible chassis, the SFP Module has to be configured to Automotive Ethernet (100- or 1000BASE-T1) after power-up.
The device features four dip switches for the following functionalities:
- Dip switch no. 1: Slave/Master setting
- Dip switch no. 2: 100/1000Mbps
- Dip switch no. 3: IEEE/Legacy mode
- Dip switch no. 4: SingleSendS/MultipleSendS mode
The device can be used together with other Technica Engineering products, like the Switch-Based products or Capture Module products or other approved chassis of Technica partners. However, the SFP Modules do not work as a “plug-and-play” solution. To set up the SFP Module, the user must be able to interact with the registers of the Phy via I²C and get in touch with Marvell (the PHY manufacturer) to receive the NDA-protected PHY-register setting datasheet to initialize the Phy. Some commercially available devices already recognize and work with the SFP modules successfully, please check the supported devices together with us.
You can get in touch with our technical sales team via technicalsales@technica-engineering.de for your individual use case with this product.
Technical data
FACTS
- 1 × DIP switch
- 1 × Status-LED
- Marvell 88Q2112 A2 PHY
- H-MTD connector for Automotive Ethernet
- Fits into a standard SFP-slot
- IP 20 rating
- Voltage requirements: 3.3 volt DC
- Size: 68 × 14 × 14 mm
FEATURES
- Converts between 1000BASE-T1 and SGMII
- Configuration via DIP switches
- DIP-Switch 1: Master/Slave
- DIP-Switch 2: HalfOut/FullOut
- DIP-Switch 3: IEEE-/Legacy-mode
- DIP-Switch 4: SingleSendS/MultipleSendS
- Supports I2C for internal register access

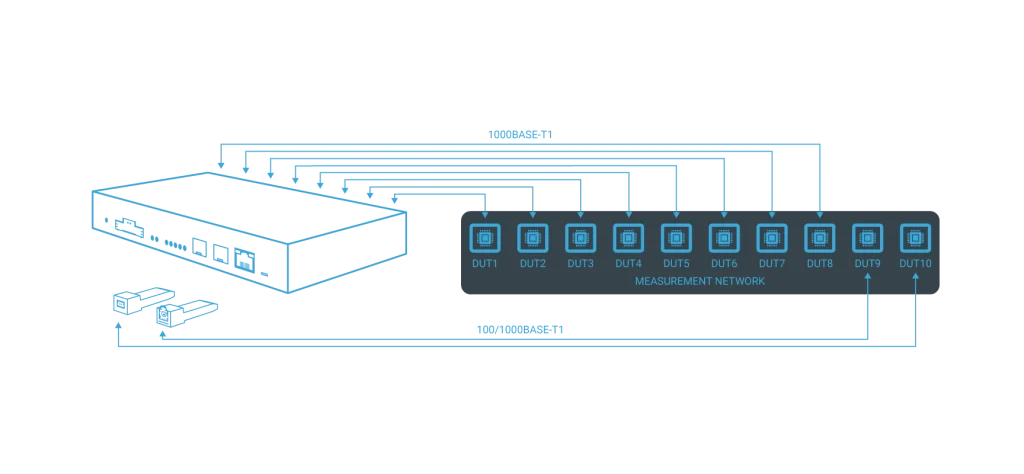

Use case
Downloads
If you want to receive more technical information about this product, please feel free to reach out to our team via technicalsales@technica-engineering.de.
- flyer 1000BASE-T1 SFP Module H-MTD
- eu declaration of conformity 1000BASE-T1 SFP Module H-MTD
- CUSTOMER PORTALSign up discover your user manual and additional benefits!
