Revolutionize Automotive Ethernet with 10BASE-T1S Simplify, Scale, Save.
Say goodbye to legacy networks like CAN and LIN. Say hello to a unified, cost-effective Ethernet architecture built for the future of mobility.
Connect With Us
Our Field Of Expertise
Why legacy networks are holding you back
Modern vehicles are packed with ECUs, sensors, and actuators. Yet, 80–90% of communication still happens over low-bandwidth legacy protocols like CAN, CAN-FD and LIN. These networks require gateways, add complexity, and limit scalability.
Meet 10BASE-T1S – ethernet for every node
Key benefits
- 10 Mbps shared bandwidth
- Single twisted pair cabling
- PLCA for collision-free access
- Power over Data Lines (PoDL)
- Scalable up to 255 nodes”
Built for engineers, trusted by OEMs
Technica Engineering offers two powerful tools to help you deploy, simulate, and analyze 10BASE-T1S networks

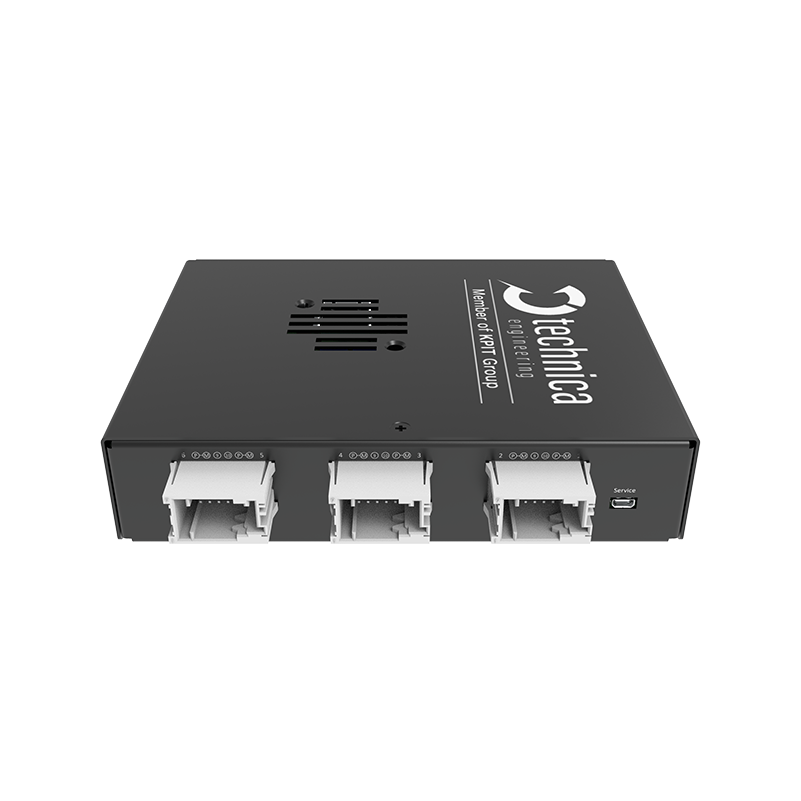

Capture Module 10BASE- T1S
Your All-in-One Solution for 10BASE-T1S Automotive Ethernet Testing and Monitoring.
Capture the traffic of the in-vehicle communication without losses
Easy and straight forward device configuration
Hardware timestamping and time synchronization support
Sleep and wake up capability to meet low power requirements
Network Interfacer 10BASE- T1S
High-Performance Solution for 10BASE-T1S Networking
Advanced routing and egress mirroring ensure efficient traffic management and diagnostics
10BASE-T1S PLCA configuration via DIP switches or an intuitive web interface
Real time device statistics to monitor your setup
Port segmentation and other switch functionalities, ensuring optimal data flow and reducing unnecessary traffic
Our products at a glance
| Feature | Network Interfacer 10BASE-T1S | Capture Module 10BASE-T1S |
|---|---|---|
| Role | Media converter & simulation tool | Passive logger & diagnostic tool |
| Ports | 3x 10BASE-T1S MQS | 6x 10BASE-T1S MQS |
| PLCA Configuration | DIP switch + Web GUI | Web GUI |
| Beacon & Empty Cycle Detection | × | ✔ |
| Traffic Injection | ✔ (Advanced License) | ✔ |
| Logging | × | ✔ (timestamped) |
| Use Case | Simulation, integration, testing | Diagnostics, compliance, analysis |
| Certification | Early Access (pre-CE) | Early Access (pre-CE) |
Technical details
| Features | Network Interfacer 10BASE-T1S | Capture Module 10BASE-T1S |
|---|---|---|
Operating Temperature
|
-40 °C to +85 °C | -40 °C to +85 °C |
Supply Voltage
|
6 V to 30 V DC (Typ. 12 V) | 6.5 V to 32 V DC (Typ. 12 V) |
System Connector
|
MQS 16 Pin Connector For Power And 10BASE-T1S Bus | – |
Power Consumption
|
5 – 10 W | 5 to 7 Watt |
IP Protection Class
|
IP20 | IP 20 |
Housing Dimensions
|
99.5 mm (W) × 93 mm (L) × 32 mm (H) | 166.5 mm (W) × 130 mm (L) × 36 mm (H) |
Weight
|
0.3 kg (Approx.) | 0.7 kg (Approx.) |
Interface
|
3x 10BASE-T1S (MQS) 1x 10/100BASE-T (USB-C) for eth or power 1x 100BASE-T (RJ-45) 1x 100/1000BASE-T1 (H-MTD) 1x 100/1000BASE-T (SFP) |
6x 10BASE-T1S (MQS) 3x 10BASE-T1 (RJ45) for Config, Logging, Sync 1x 10BASE-T1 (MQS) for Config 1x 10BASE-T1S (MQS) for Config 2x Wake In/Out (MQS) |
Designed for automotive. Ready for
deployment.
Already present in platforms of an European OEM, 10BASE-T1S is transforming how OEMs think about in-vehicle networking. Whether you’re building EVs, autonomous systems, or next-gen infotainment, this is the Ethernet layer that scales.
Datasheet
Capture Module 10BASE-T1S
Complete technical specifications, Connectivity options, and deployment guidelines
Download PDF
Network Interfacer 10BASE-T1S
Detailed product information, performance benchmarks and integration examples
Download PDF
Ready to upgrade your automotive testing?
Our network solutions provide the accuracy and reliability demanded by modern automotive development.
