The impact

The challenge

Precise time sync for in
vehicle network traffic

The solution

Hardware timestamping with capture module

  • All IVN traffic over common ethernet standard with precise timestamps.
  • Ease of fault identification.
  • Identify time sync problems, packet drops and network related issues.

The setup

Deployed Technica’s capture modules for hardware timestamping of IVN traffic aggregated by time aware
Technica’s enhanced ethernet switches to a data acquisition system.

Are these challenges also
slowing you down in testing?

Lost messages during high-load events

Burst data capture failures

Time sync issues across multiple automotive buses

Delayed startups skewing test results

Complex setups with multiple
dataloggers

Invalid or corrupted log data

Technica’s capture
modules are a best fit

Accurate hardware
timestamps

Reduced cost
complexity

Data injection
without interruption

Scalable
design

Ideal solution for IVN testing

Seamless
integration

Multiple variants to
suit all requirements

Capture Module 1000 HIGH

Real-time automotive Ethernet data capture.
Efficient, accurate testing and diagnostics across multiple in-vehicle ports

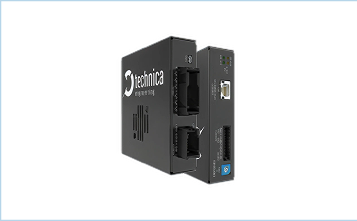

Capture Module CAN Combo

All-in-One data capture and transmission device.
Reliable and user-friendly testing and diagnostics for CAN, CAN-FD, FlexRay and RS232/TTL

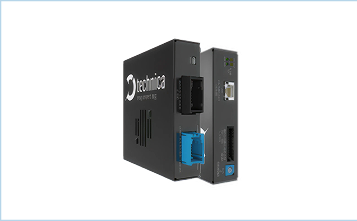

Capture Module LIN Combo

All-in-One data capture and transmission device.
Reliable and user-friendly testing and diagnostics for LIN and analog signals

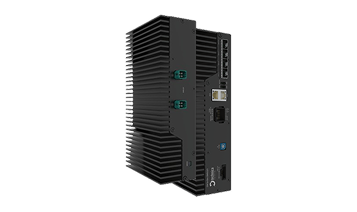

Capture Module SerDes GMSL2/3

High-speed sensor data capturing & forwarding.
Non-Intrusive GMSL2/3 sensor data capture and diagnostics for ADAS/AD applications

Capture Module Sense

Advanced signal logging solution.
High-precision measurement for In-Vehicle analog signals

Ready to capture
every bit?
