Capture Module CAN Combo: All-in-One Vehicle Network Solution

Reliable, User-Friendly Testing for CAN, CAN-FD, FlexRay, and RS232/TTL

Are you looking for any of these?

configuration-1.svg

Capture the traffic of the in-vehicle-communication without losses

manufacturing-1.svg

Easy and straight forward device configuration

scalable-1.svg

Simultaneous capturing and transmitting of data

electricity-1.svg

Sleep and wake up capability to meet low power requirements

Our Products

Capture Module CAN Combo is an all-in-one solution to capture (CAN, CAN-FD, FlexRay and RS232/TTL) and transmit (CAN, CAN-FD or FlexRay) data from/to the in-vehicle-network without interfering the ECU communication. It offers a reliable and user-friendly solution for testing, validation and diagnostics.

CAPTURE MODULE CAN Combo

Capture Module

The Capture Module CAN Combo is an active tap device designed to capture CAN (-FD) traffic from up to 6 CAN (-FD) busses, one Flexray bus and two RS-232 or TTL interfaces. The received data is captured and HW timestamped without causing interference on the in-vehicle-network (IVN) and sent out to the data sink (e.g. data logger or PC).

Standardized logging protocol

The Capture Module encapsulates logged frames into an ethernet frame adding valuable information such as the HW timestamp, Interface ID, Counter and more in a standardized logging protocol header.

Scalable setups

Several Capture Modules can be combined and used together in the same measurement network. The built-in time synchronization feature allows to synchronize the whole measurement network with the same time base. This makes the Capture Modules very scalable and allows to add other IVN technologies to the measurement setup.

Optimized logging

Startup time is crucial in an in-vehicle-network. Therefore, the Capture Modules are developed to provide an optimized startup time to be ready to log before the ECUs are up and send data. In addition to that, the Capture Module is equipped with an internal buffer to store the first frames (sent from the ECUs), even if the data sink is not yet ready. As soon as the data sink is up and ready to receive data, all the stored data will be sent out. With the packetization and output traffic shaping feature the Capture Module can adjust the size of the logging frames and have the possibility to maintain a consistent data flow (to the logger or the test PC). This way it actively prevents forwarding of bursts. The combination of these features ensures that no frames are lost.

Configuration

The CM offers a flexible and user-friendly configuration through its built-in web server. The device webpage can be easily accessed via a standard web browser. In addition, the possibility to import/export a configuration makes it even more convenient.

Capture Modules are designed to be used in different environments such as in the car, on a development desk or in testbenches. In order to cover these areas as best as possible, the devices allow continuous operation and a wide temperature range.

Use Case

Operating Temperature -40 °C to +80 °C
Supply Voltage 6.5 V to 24 V DC (typ. 12 V)
Power consumption4.8 to 7 Watt
IP Protection Class IP 20
Housing Dimensions133 x 130 x 33 mm
Weight0.5 kg (approx.)
Interfaces 6x CAN (-FD) (MQS)
6x CAN (-FD) (MQS)
2x RS-232/TTL (MQS)
1x 1000BASE-T (RJ-45) for Config, Logging, Sync
1x 100BASE-T1 (MQS) for Config, Logging, Sync
1x 100BASE-T1 (MQS) for Config
2x Wake in/out (MQS)
TransceiverTJA1059

Features of Capture Module CAN Combo

Device Features Configuration Webpage
Wake-/Sleep
Import-/Export of Configurations
Status LEDs
TECMP / ASAM CMP
Status Messages
Manual IP Configuration via Rotary Switch
Optimized Startup + Startup Buffer
Cascading
Hardware Timestamping with nanoseconds resolution
Time Synchronization
Packetization
Output Traffic Shaping
Basic and advanced Filtering
Sync Events
Transmission Feature* CAN (-FD) / FlexRay Transmission

* License needs to be ordered separately

Order Information

NameArticle NumberCable Set Number*FlexRay transmissionCAN transmission
Capture Module CAN ComboTE-1171KS-1171FT-1171-1FT-1171-2

*Cable set needs to be ordered separately

Fits well with

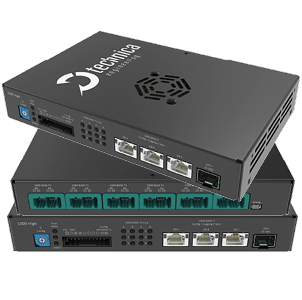

Capture Module 1000 HIGH
