Enhanced Ethernet Switch MACsec (MATEnet / H-MTD) allows for a managed, multi-directional exchange of Ethernet messages, thus providing the customer with a wide range of automotive test solutions.
Enhanced Ethernet Switch MACsec

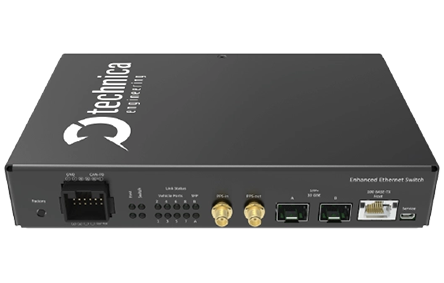

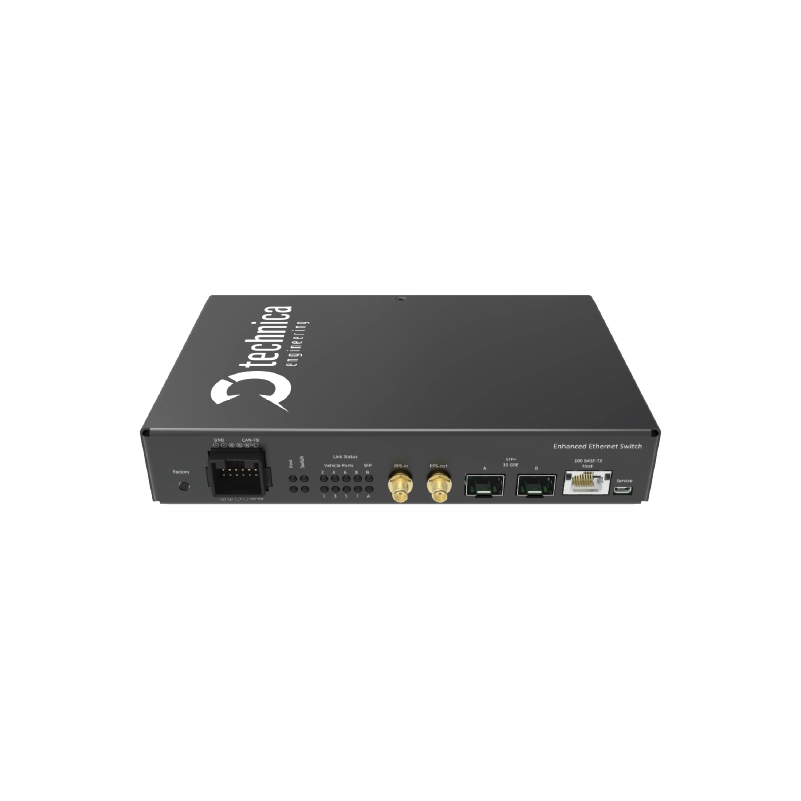

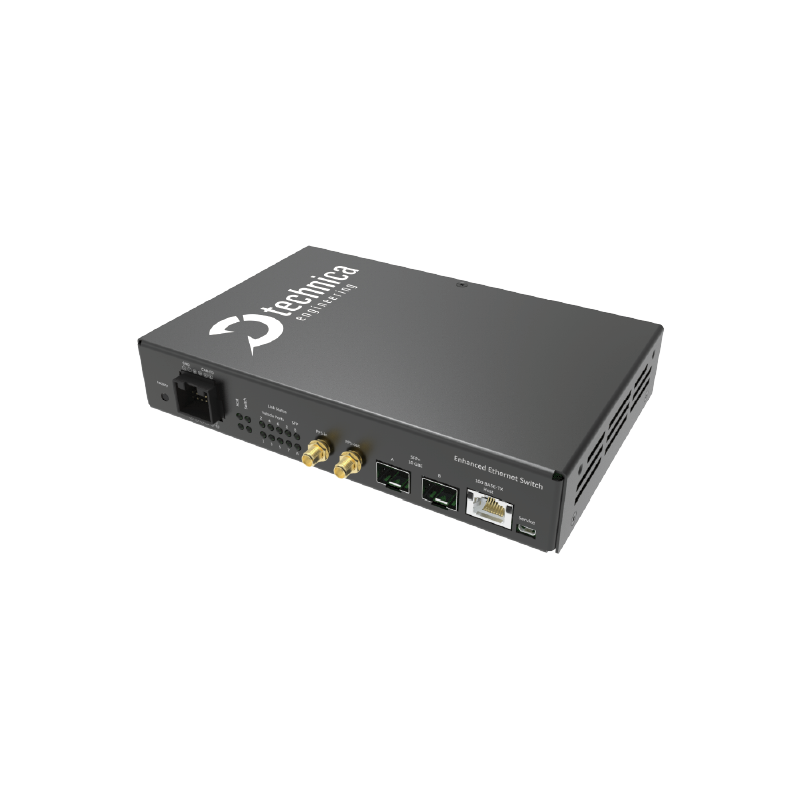

The Enhanced Ethernet Switch (EES) MACsec of Technica Engineering is an Automotive Ethernet switch with AVB/TSN capabilities that allows up to 8x 100/1000BASE-T1 and 2x SFP+ slots supporting up to 10 GBits. It supports the MACsec technology implemented in hardware, allowing MACsec to run at full speed, up to 1Gpbs. In addition, it supports the MKA (MACsec Key Agreement) protocol, implemented by Technica Engineering.
Layer 2 Switch
The Enhanced Ethernet Switch MACsec can establish virtual point-to-point connections, using single-tagged VLANs (802.1q) or double-tagged VLANs (802.1q-in-q), thus enabling filter and control over data streams. Each port provides 8-levels of Quality of Services (QoS) classes and advanced traffic filtering capabilities with ingress and egress rules. This ensures the prioritization, resource reservation, and control mechanisms over the data received.
The Enhanced Ethernet Switch is capable of additional TSN functionalities which are not implemented yet: 802.1Qbv and 802.1Qbu. Customer-specific use cases can be supported, if needed. Contact technicalsales@technica-engineering.de for additional information.
Time Synchronization
The EES MACsec provides a reliable gPTP/ 802.1AS-2011 automotive profile stack which is also compatible with 802.1AS-2020. In addition, the stack partially includes the IEEE 1588-2008 standard for time synchronization that allows various customization possibilities to adapt to many customer use cases.
Configuration
Through an internal configuration website, the user can easily configure the device for their use cases, abstracting the complex underlying switch hardware. This includes MACsec and MKA, VLANs, port mirroring, forwarding or filtering, deep packet inspection through TCAM rules, port segmentation, and many other features offered by Layer 2 switches.
Enhanced Ethernet Switches of Technica Engineering can be used on the development desk and even in harsh environments. These devices are adapted for continuous operation in Testbenches, which also corresponds temperature range in which they can work and robust casing.
Use Case
| Operating Temperature | -40 °C to +85 °C |
| Supply Voltage | 6.5 V to 32 V DC (typ. 12 V) |
| Power consumption | 6 to 13 Watt |
| IP Protection Class | IP 20 |
| Housing Dimensions | 198 mm (W), 141 mm (L), 39 mm (H) |
| Weight | 0.7 kg (approx.) |
| Interfaces | 8x 100/1000BASE-T1 (MATEnet/H-MTD) 2x SFP+ 2x PPS (In/Out) 1x 100BASE-TX (Host Port) 1x Service Port 2x Wake-Up Line |
| Transceiver | Marvell 88Q2221M |
Features of the Enhanced Ethernet Switch MACsec
| Device Features | Configuration Webpage |
| Wake-/Sleep | |
| Import-/Export of Configurations | |
| Status LEDs | |
| Port Statistic Dashboard | |
| Switch Features | Port Segmentation |
| Single / Double VLAN Mode | |
| Mirroring | |
| ARP Table | |
| Core Feature Package | Single Partition Time Synchronization |
| Advanced Filter | |
| Remote API | |
| Advanced Feature Package* | Multi Partition Time Synchronization |
| PTPv2togPTP Bridge | |
| Traffic Shaping | |
| Ingress Rate Limiter | |
| MACsec Feature Package* | MACsec + MKA |
* Needs to be ordered separately
Order Information
| Name | Article Number | Cable Set Number* | Adv. Feature Package* | MACsec Feature Package* |
|---|---|---|---|---|
| Enhanced Ethernet Switch MACsec MATEnet | TE-2003 | KS-2003 | TE-2003-AF | TE-2003_MACsec |
| Enhanced Ethernet Switch MACsec H-MTD | TE-2004 | KS-2004 | TE-2004-AF | TE-2004_MACsec |
* Needs to be ordered separately
